Advanced Spectrometer, Turntable – for Optical Studies and Light Physics – Includes Prism Holder, Grating Holder…

Description

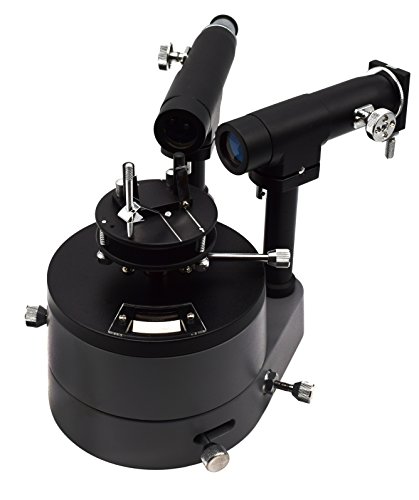

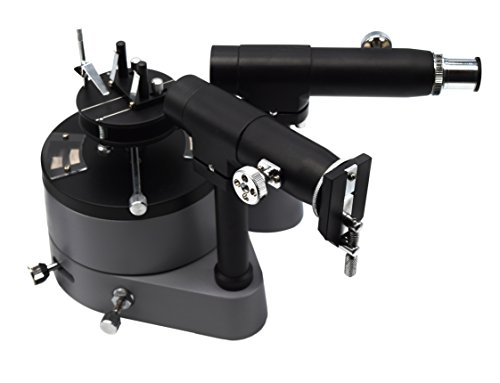

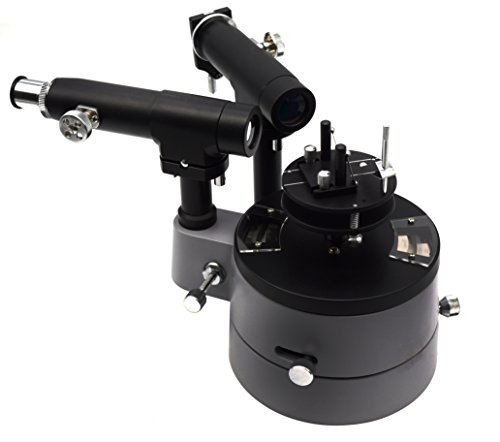

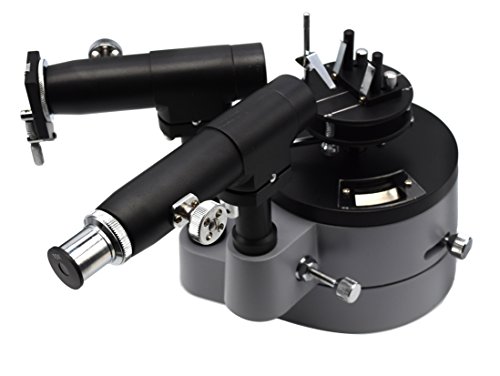

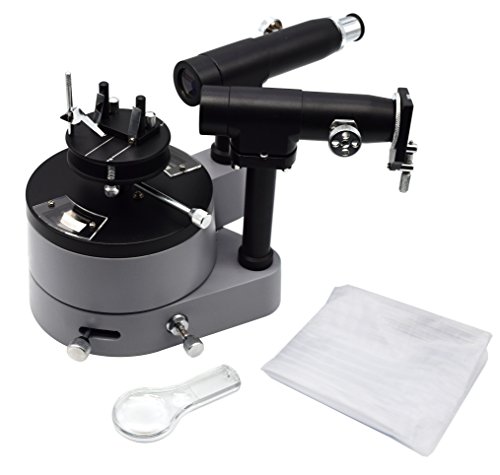

Spectrometer is an optical instrument, which can be used to determine the wavelength of light as well as the index of refraction of solids and liquids. The instrument is supplied with one prism holder, one grading holder, dust cover and includes a wooden storage case. The spectrometer consists in principle of a solid base with a turntable, a prism table, a collimator and a telescope.

The turntable is the major part of the instrument. It is mounted with a robust axle, and it can be rotated around a vertical axis. It is provided with a circular scale marked from 0 to 360 degrees at 0.5 degree intervals. The prism table consists of two metal discs, which are held together with three spring loaded adjustment screws placed at the apexes of an equilateral triangle. The collimator consists of two concentric metal tubes with an adjustable vertical slit at one end, and a convex lens at the other. The astronomical telescope features a cross-hair sighting device and a Ramsden eyepiece.

The spectrometer measures approximately 9″ tall and 14″ wide when turntable is in position as photographed.

Make sure this fits by entering your model number.
Advanced Spectrometer with prism and grating holder. This optical instrument can be used to determine the wavelength of light as well as the index of refraction of solids and liquids.
The turntable is a major part of this optical instrument. It is mounted with a robust axle, and it can be rotated around a vertical axis
Features a circular scale marked from 0 to 360 degrees at 0.5 degree intervals.

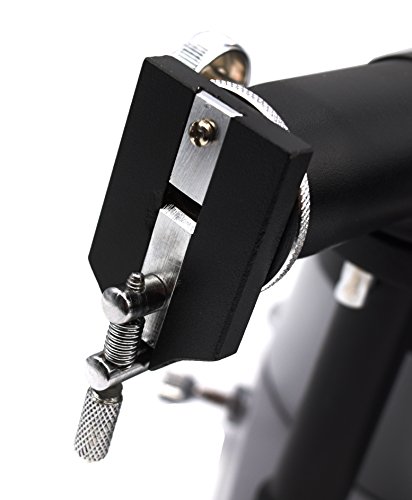

The collimator consists of two concentric metal tubes with adjustable vertical slit at one end, and a convex lens at the other. The astronomical telescope is attached to the arm of the prism table and has a cross-hair sighting device and a Ramsden eyepiece positioned at one end of two concentric tubes.

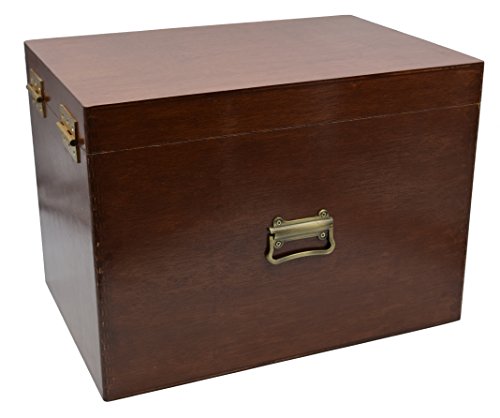

Includes a sturdy, polished wooden storage case
