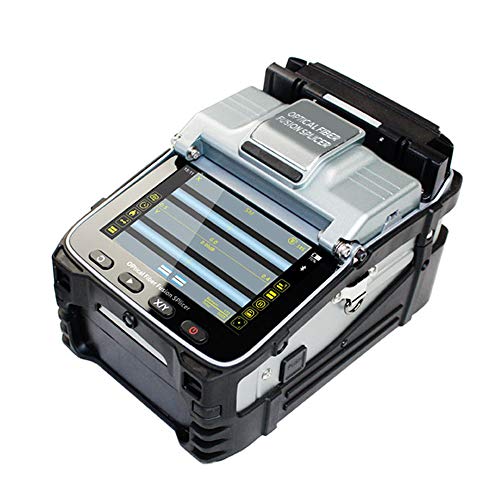

D YEDEMC SM&MM Automatic Intelligent Optical Fiber Fusion Splicer Optical Fiber Welding Splicing Machine (Ai-7C) & Fiber Cleaver Kit

Category:

Description

Style:Ai-7C

Specifications :
Fiber alignment:Core/cladding alignment / Manual alignment
Splicing time:8S(AI-7C)
Heating time:18S Automatic heating(Preheating
Focus mode:Six motors Auto focus
Applicable Fibers:SM(G.652&G.657)、MM(G.651)DS(G.657)、NZDS(G.655)
Splice Loss:0.025dB(SM)、0.01dB(MM)、 0.04dB(DS/NZDS)
Control technology:Real-time control and calibration of fusion ARC
Return loss:Better than 60DB
Fiber diameter:Cladding Diameter(80-150μm)、Coating Diameter(100-1000μm)
Fiber Cleave Length:Coating less than 250μm(8-16mm)、Coating less than 250-1000μm(16mm)
Built-in lighting:easy for night operation
Tension Test:Standard 2N
Fiber holders:3 in 1 fiber holder, SM, MM, bare fiber, pigtail,rubber-insulated, multi fiber cable
Magnification:300 for X or Y view, 150 for X or Y view
Screen:5 inch TFT color display
Bluetooth: have Bluetooth module
Splicing Mode:Normal / high precision splicing
Splicing record storage:Synchronize to the phone, the server to cloud storage unlimited

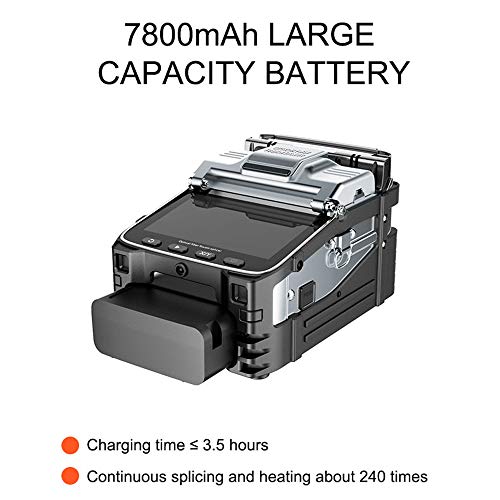

Built-in battery:7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 200 times
Power supply:Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified,real-time detection of battery power
Operating Conditions:Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation)
Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s
Shrinkable tube:60mm、40mm
Size:130mm*122*148

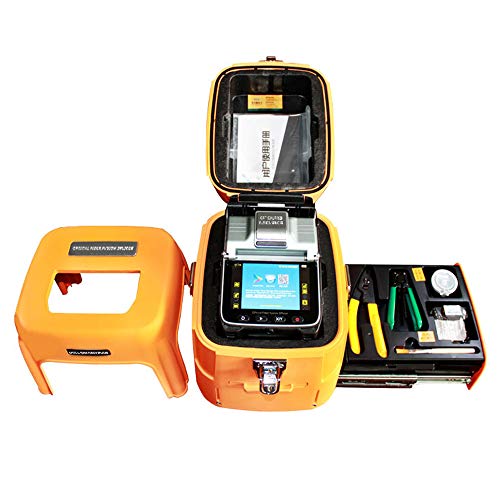

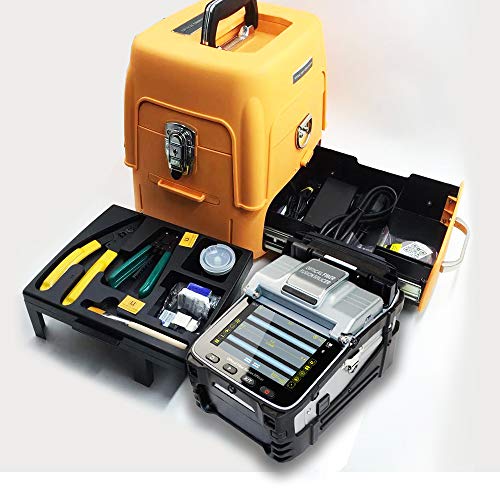

Package including :
Fiber Fusion Splicer
Fiber Cleaver
Spare electrode
Wire stripping pliers
Miller stripper
Hex key
Strap for fusion splicer
Strap for carrying case
Power Adapter
Alcohol Bottle
Brush

Make sure this fitsby entering your model number.
3 In 1 Fiber Holder suit for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable;Splice Loss:0.025dB(SM)、0.01dB(MM)、0.04dB(DS/NZDS);Fiber diameter:Cladding Diameter:80-150μm、Coating Diameter:100-1000μm;Fiber Cleave Length:Coating less than 250µm:8-16mm、Coating less than 250-1000µm:16mm.

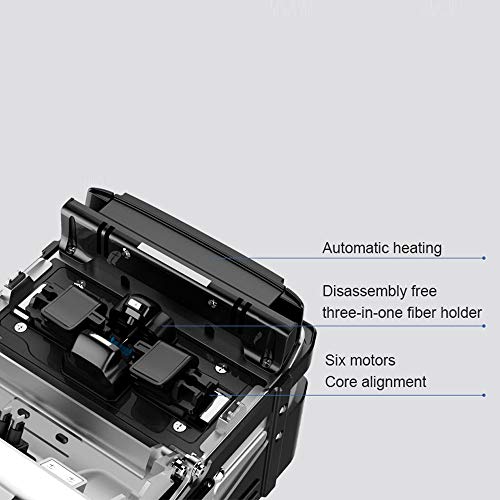

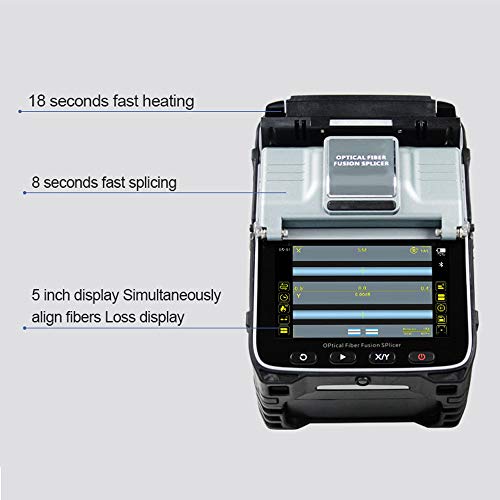

With 5-inch 800X480 high-resolution screen, is up to 300 times focus magnifications;Six motors Core alignment,fusion splicer core to core 6 motors 8S splicing,18S heating time
Through the phone app,splicing is easy to operate.
10 Languages to switch freely :English,french,Russion,Italian,Portuguese,Polish,Spanish,Thai,Arabi
Lifetime Friendly Customer Service,if have problem,pls contact us using the amazon message box,we will solve your problem in time and must give you a satisfactory solution .At the same time,you also need a little patience.
