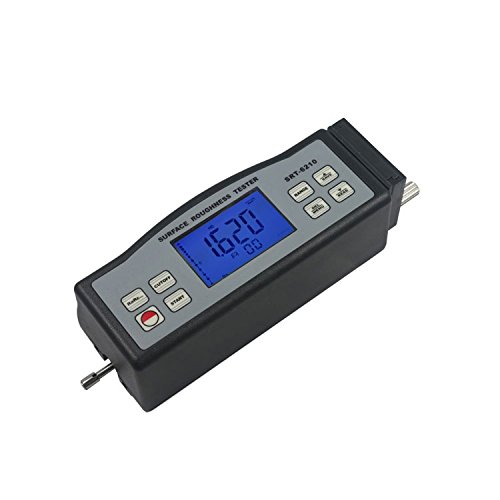

DTI-SRT-6210 Portable Surface Roughness Tester

Check this useful link to learn what is a roughness tester.

Features:

Manual or automatic shut down.
Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
Metric /Imperial Conversion.
USB/RS-232 data output to connect with PC. Bluetooth data output choice.
Display: 4 digits, 10 mm LCD, with blue backlight
Parameters: Ra, Rz, Rq, Rt
Measuring Range: Ra, Rq: 0.005~16.00 um/0.020~629.9uinch
Rz, Rt: 0.020~160.0 um/0.078~6299 uinch
Accuracy: less than +- 10%
Fluctuation of display value: Not more than 6%
Sensor: Test Principle: Inductance type
Radius of Probe Pin: 5 um
Material of Probe Pin: Diamond
Dynamo-measurement of Probe: 4 mN(0.4 gf)
Probe Angle: 90degree
Vertical Radius of Guiding Head: 48mm
Maximum driving stroke:17.5mm/0.7inch
Cutoff length: 0.25mm/0.8mm/2.5mm optional
Driving speed-Sampling: When Length=0.25mm, Vt=0.135mm/s; When Length=0.8mm, Vt=0.5mm/s; When Length=2.5mm, Vt=1mm/s
Returning: Vt=1mm/s
Profile digital filter-Filtered Profile: RC, PC-RC, GAUSS
Non-Filtered Profile: D-P
Resolution: 0.001 um, if reading less than 10um; 0.01 um, if 10um less than or equal to reading less than or equal to 100um; 0.1 um, if reading great than or equal to 100um
Evaluation length: 1~5 L optional
Auto Power Off
Data Memorize: 7 Groups
Operating conditions: Temperature: 0~50 degree Humidity: less than 80 %RH
Power Supply: Built-in rechargeable Li-ion battery
Dimensions: 140x52x48 mm
Weight: 420g

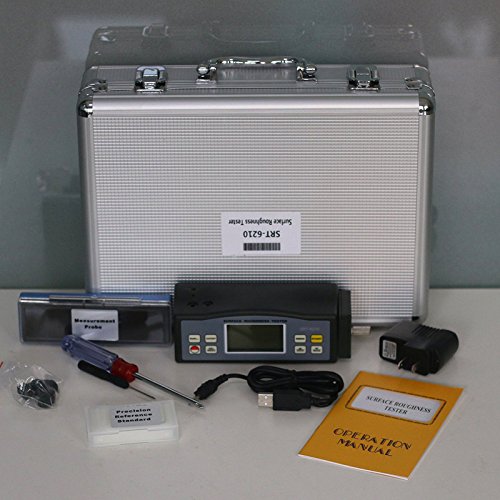

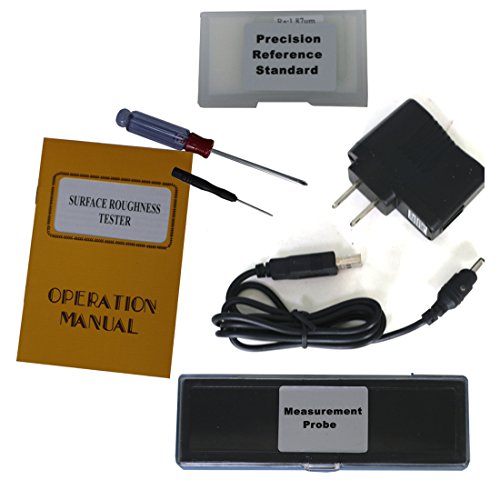

Surface Roughness Tester Package include:

1. Main Unit
2. Small Screwdriver
3. Power Adapter
4. Standard Sample Plate
5. Standard Sensor
6. Adjustable Leg
7. Sheath of Sensor

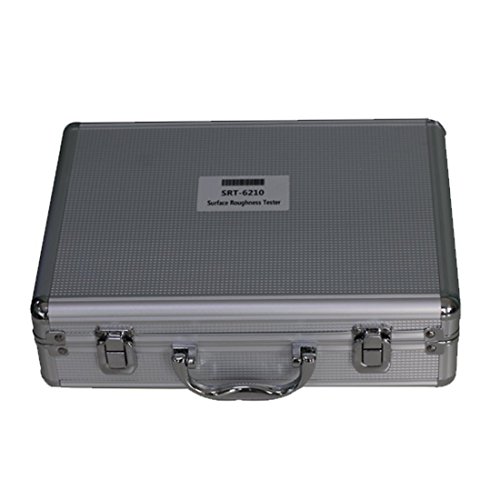

8. Carrying Case
9. Manual

Optional accessories:

1. RS232 Data Cable with software
2. Bluetooth Data Adapter with software

Applications: Widely used in production site to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters.

Small in size, light in weight and easy to use. Highly sophisticated inductance sensor. Four wave filtering methods : RC, PC-RC, GAUSS and D-P. Built-in lithium ion rechargeable battery and control circuit with high capacity.

Be compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe.

This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
