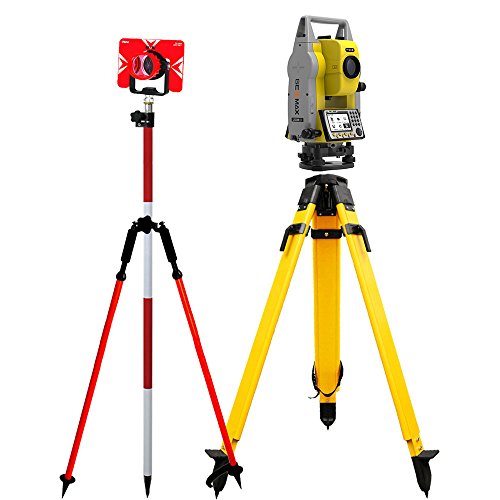

GeoMax Zoom25 neXus5 2″ 500m Reflectorless Prism Total Station Starter Package

Amazon.com Price: $7,624.50 (as of 12/27/2020 20:45 PST- Details)

Description

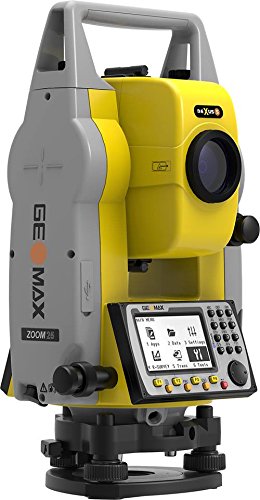

The Zoom25 builds on the capabilities of the Zoom10 to allow measurements to a prism over 10,000 feet, and reflectorless measurements over 1,500 feet. Polar options will allow you to work at extreme temperatures, and its large, high-resolution display will help keep you productive. Data transfer and connectivity options will allow you to pair the Zoom25 with your data collector or transfer your points via USB. Features: “GeoMax Advanced” intuitive onboard SW “PowerLock” theft protection “SecureLock” Drives neXus EDM Technology up to 500m non-prism range Quadruple axis compensation Coaxial visible laser beam Laser plummet High resolution, large size black & white display USB/RS232 connection Built-in Bluetooth USB memory stick 16 hours battery life Polar option –30°C ANGLE MEASUREMENTS Accuracy: 5” (1.5 mgon) Display resolution: 0.1” / 0.1 mgon Method: Absolute, continuous, diametrical Compensation: Quadruple axis INTERFACE Keyboard: Full alphanumeric, dual face (opt.) Display: High resolution (280×160 pixel), 8 lines x 30 characters, illuminated Data recording: Internal memory; 50,000 pts Interface: USB, serial & external power Removable memory: USB memory stick Bluetooth: Device Class 1 DISTANCE MEASUREMENTS Prism: 3,500 m / 2 mm + 2 ppm Non-prism: 500 m / 2 mm + 2 ppm Footprint: 8 x 20 mm** POWER SUPPLY Internal battery: Removable Li-Ion Operating time****: 36 h (continous angle), 16 h (contindistance measurement every 30s) PHYSICAL SPECIFICATIONS Weight 5.1 kg (incl. battery & tribrach) Operating temp. –30°C to 50°C*** Protection class IP55 dust and waterproof Humidity 95 %, non-condensing PLUMMET Type: Laser point, adjustable brightness Accuracy: 1.5 mm at 1.5 m instrument height OPERATING SYSTEM Microsoft: Windows embedded CE

“GeoMax Advanced” intuitive onboard SW
“PowerLock” theft protection
neXus EDM Technology up to 500m non-prism range
Built-in Bluetooth
16 hours battery life
