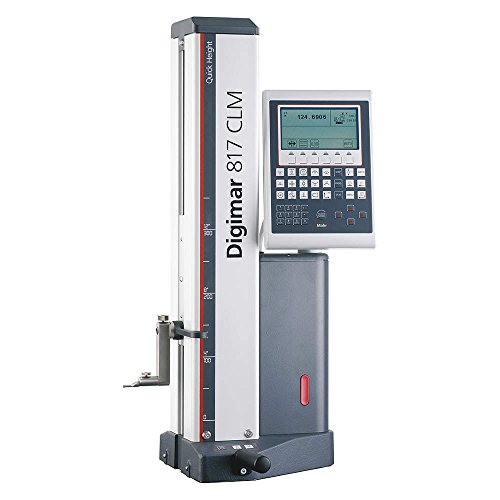

Mahr Federal 4429010 817 CLM 2D Height Gage, 14″/ 350 mm

Category: Price: $8,060.00 (as of 12/27/2020 20:50 PST- Details) & FREE Shipping.


The Mahr Federal 4429010 817 CLM 2D Height Gauge has a measurement range of 0 to 350mm, with selectable resolution, a backlit LCD, and motorized measuring carriage. This electronic height measuring instrument has selectable resolution of 0.01mm, 0.005mm, 0.001mm, 0.0005mm, 0.0001mm, 0.001″, 0.0005″, 0.0001″, 0.00005″, or 0.00001″. The backlit LCD digital readout displays sharp figures for viewing ease. A motorized measuring carriage with air bearings provides smooth, even travel on stainless-steel guideways. The spherical probe measures in one or two dimensions. The unit stores up to 40 programmable measuring procedures for automated measurement. The gauge’s electronic microprocessor provides the ability to set additional zero points on a work piece. It is powered by an integrated rechargeable battery with up to 10 hours of battery life. The unit has RS-232 and USB ports for connecting to a computer or printer (sold separately), as well as a wireless interface. It comes with a probe carrier, probe, setting block, power adapter, USB cable, protective cover, calibration certificate, and instructions. Height gauges are commonly used to perform precision height, shaft, groove, and bore measurements, among others, in manufacturing, machining, and mechanical engineering.

Measurement range 0 to 350mm/0 to 14 inches
Selectable resolution 0.01mm, 0.005mm, 0.001mm, 0.0005mm, 0.0001mm, 0.001″, 0.0005″, 0.0001″, 0.00005″, or 0.00001″
Measuring error (at working temperature) 1.8μm plus length in mm/600
Repeatability 0.5μm plane, 1μm bore
Measuring force 1.0 Newtons (+/- 0.2 N)
Display LCD
Interface RS-232, USB, wireless
Battery life 10 hours
Operating temperature 10 to 40 degrees C/50 to 104 degrees F
Weight 25kg

Mahr Federal manufactures precision measuring instruments for dimensional measurement, metering gear pumps, and rotary stroke bearings for mechanical engineering, electronics, medical technology, and automotive industries, among others. The company, founded in 1861 and headquartered in Esslingen, Germany, has a US office in Providence, RI.

What’s in the Box?

  • 4429010 817 CLM 2D Height Gage
  • Probe carrier
  • Probe
  • Setting block
  • Power adapter
  • USB cable
  • Protective cover
  • Calibration certificate
  • Instructions
