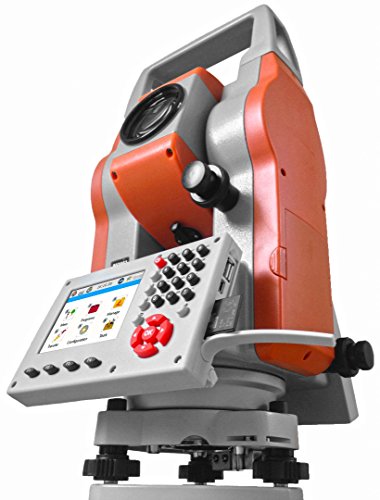

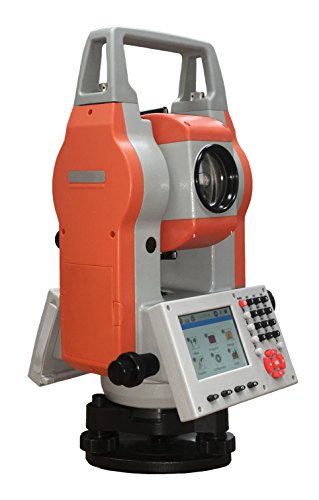

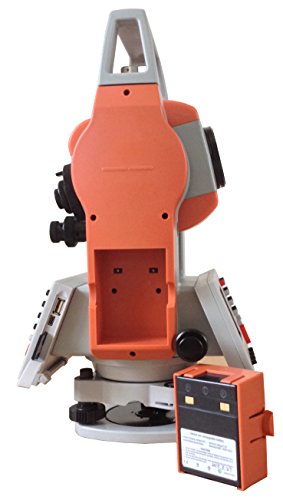

Windows CE 2″ Reflectorless Total Station Bluetooth Dual Axis Road Surveying

Description

This Windows CE Total Station comes equipped with powerful tools that will insure you get the job done. The two touch screen displays give you a clear, colorful, and user friendly interface, that will guide you through its functionalities. In addition to the common basic measuring modes and special measuring programs (remote elevation measurement, offset measurement, missing line measurement, distance layout, coordinate layout, resection and area measurement), the road measuring program is preinstalled, significantly facilitating control survey, topographic survey and engineering lofting. Distance Measurement Section Range Non-prism 600m/800m prism Single prism 3000m Three prism 5000m Accuracy Non-prism ±（3mm+2ppm·D） Prism ±（2mm+2ppm·D）, ±（3mm+2ppm·D） Unit m／ft Display Maximum 99999999.9999m Minimum 0.1mm Measuring time Precise model:1S, Track model:0.8S Number of time Set 1 ～ 99 Meteorologiccorrection Input the value and correct automatic Prismconstant Input the value and correct automatic Angle Measurement Section Method Absolute coding Grating diameter 79mm Minimum reading 1″ Detection Horizontal Diametrical detection Vertical Diametrical detection Accuracy 2″ Telescope Section Imaging Positive Length 170ｍｍ Effectiveaperture 48mm Magnification 30× Angle of vision 1.5° Distinguishability 3.5″ Minimum focus distance 1.5m Compensator System Double axis photoelectric tilt sensor or Single axis liquid tilt sensor Working range ±3′ Distinguishability 1″ Display Section Type Double sides,320×240 LCD Display Data Transmission Port Bluetooth，SD Card，USB，RS-232C Capacity 40,000 data at least Others Plummet Optical or Laser plummet Power Rechargeable lithium battery,DC7.4V,3600mAh Continuous working time 4 hours at least Size 174×207×383mm Weight 6.8Kg Working temperature -20℃ ～ 50℃
