YUHUA DZF-6020 Vacuum Drying Oven 0.9 Cu Ft 25L Digital Heating Drying Oven Stainless Steel Vacuum Chamber one Year…

Description

Vacuum drying oven is designed for heat sensitive, labile and readily oxidization materials to do drying test, baking test, heat treatment test, disinfecting test, etc. It can be filed with inert gas and dry some ingredient complex materials quickly.Normally the oven is widely used in the fields of Electrics, Electronics, Instruments, Materials, Education, Medicine, chemical industry or other Scientific Research Organizations and Production Units.

Features

* Equipped with high performance MCU-based temperature controller with advanced PID algorithm to maintain temperature uniformity (+/- 1°F) from low temperature to 480°F (250°C).
* Heating element is located in the internal partitions of the box.
* Heating time reduces by 50% compared with traditional vacuum drying oven.
* Degassing drying oven with large LCD screen display, able to show multi-group data.
* Dual layer tempered glass door with LED lights for clear observation.
* Menu-style user interface, easy to understand and operate.
* Drying sterilizing oven has adjustable tightness door.
* Integrated forming silicone rubber door gasket maintains constant vacuum level even for long-term operation.
* Stainless steel working chamber.
* Dual layer tempered glass door with LED lights for clear observation.
* The PID temperature controller with timing and touch button, which is easy to operate.

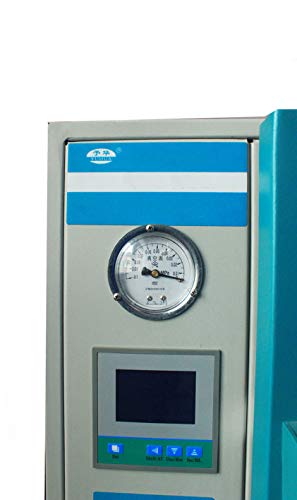

* Oil-filled mechanical pressure gauge is for more accurate vacuum readings.

Item Specifications

* Model: DZF-6020
* Product Type: Desktop Vacuum Drying Oven
* Working Voltage: 110V Power: 450W
* Temperature Range: Ambient + 10℃to 250℃/Ambient + 9℉to 480℉
* Temperature Staility: ±1℃
* Temperature Resolution: 0.1℃ Chamber
* Material: Stainless Steel
* Timer Range: 1~9999min
* Chamber Bracket: Internal heating
* One unremovable shelf 0.9 Cu Ft (23L) 480°F (250°C) Lab Vacuum Drying Oven Economy Version

Make sure this fits by entering your model number.
Voltage:110V 60HZ,Input Power:700W
Inner Dimension(W*D*H,mm):300*300*270,Overall Dimension(W*D*H,mm): 620*510*480 Weight:59kg
Temperature Measurement Range: Rt+10~250℃
Shipping:We Use Wooden Case Packaging,7-14 Working Days Arrived;
Note: Please first exhaust the air in the oven before heating. When the power off, please wait the appropriate temperature in the chamber before take out of the articles
