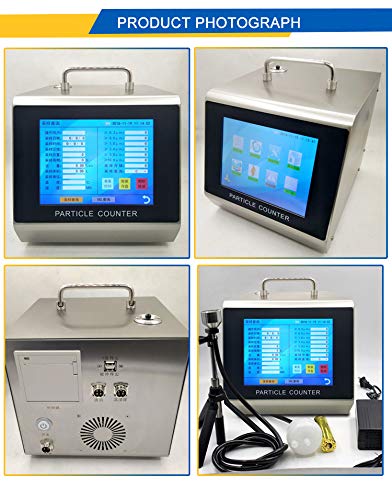

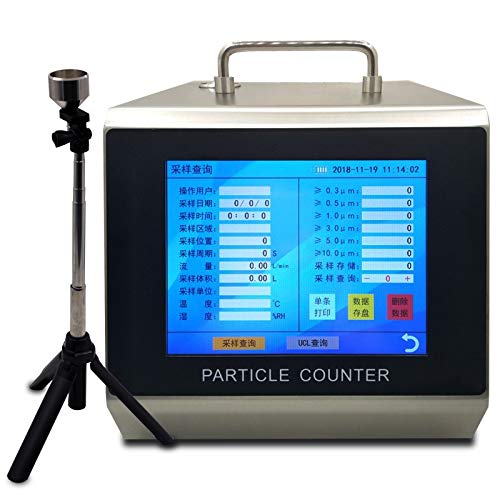

Large Sampling Volume Clean Room Dust Particle Counter Y09-5100 Laser Particle Counter
Amazon.com Price: $9,299.99 (as of 12/27/2020 20:38 PST- Details) Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.
Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.
Y09-5100ACDC particle counter is a kind of instrument used to measure the size and quantity of dust particles in unit volume air of clean environment, which can directly detect different class clean environment. With features of using laser light source, large LCD touch- screen display, small size, light weight, high precision, simple operation, storing & printing the measurement results and so on, this product is widely used in electronics, optical, chemical, food, cosmetics, e-health, biological products, aerospace, etc.
- Sampling Flow:100L/MIN ± 5%
- Particle channels: total 6 channels, that is 0.5, 1, 3, 5, 10, 25 um
- Laser source: Laser diode
- Display: 8 inch colorful LCD touch screen
- Repeatability relative error: ＜±10%
- Particle size distribution error: ＜±30%
- Maximum sampling concentration: 35000 particles per liter
- Zero counter: ≤10 minutes
- Sampling time: 5-9999 seconds, adjustable
- Sampling delay: 0-100 seconds, adjustable
- Interval: 0-1800 seconds
- Sampling area: Set by user 0-9999 seconds
- Sampling location: Set by user 0-9999 seconds
- Data memory capacity: 1-5000 units sampling data, can query measurement data
- Built-in thermal printer
- Power: AC & DC / AC 220V/50HZ, DC 17.5V 5A
- Product size:315*260*230mm
- Product weight:14.5KG
All products have been checked and packaged in good condition before shipping. If you have any questions or need any help, please feel free to contact us!
Make sure this fits by entering your model number.
package includes 1*Laser Particle Counter, 1*Li-ion Charger, 1*Stainless Steel Sampling Head, 1*Tripod for Placing Sampling Head, 1*Self Sampling Head, 1*Power Cable, 1*U Flash Drive, 1* USB Cable, 1*User Manual, 1*Calibration Report

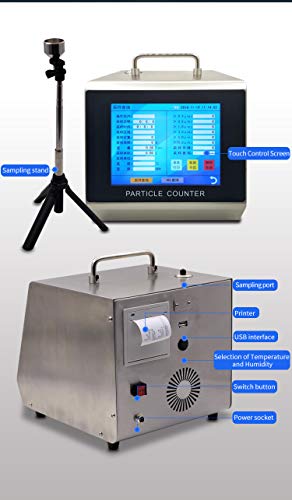

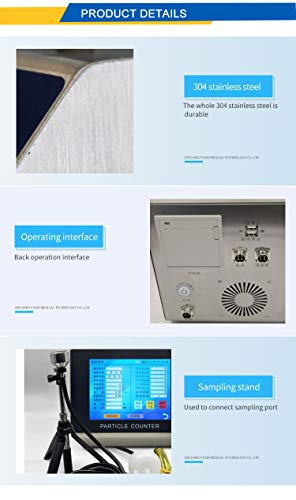

Interface: The user can according to demand reset operation, interface mode, exit, printing, sampling, confirmed.
Display: 8 inch colorful LCD touch screen
Sampling flow rate: 100L/MIN
Light source: laser diode
