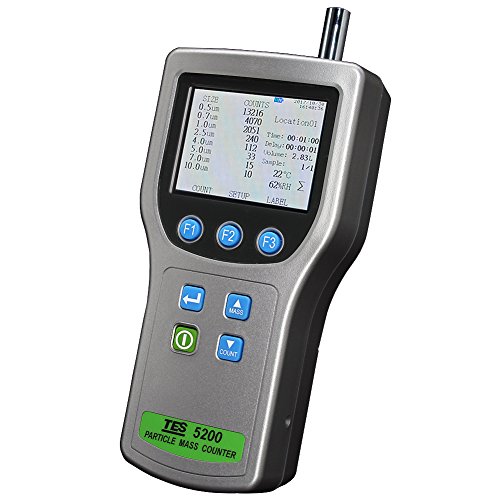

TES 5200 Particle Mass Counter

Amazon.com Price: $2,988.99 (as of 12/27/2020 20:38 PST- Details)

Description

TES 5200 Particle Mass Counter is a full featured, battery operated, handheld particle counter or mass monitor.
In the count mode the meter will measure particle counts at fixed sizes of 0.5 um, 0.7 um, 1.0 um, 2.5 um, 4.0 um, 5.0 um, 7.0 um and 10.0 um.
In the mass mode the meter will measure PM1, PM2.5, PM4, PM7, PM10 and TSP mass concentration levels.
It holds 500 samples in flash memory and records the date, time, counts or mass, sample volume, temperature, and relative humidity of each sample.
The data can be easily downloaded to a personal computer using the USB interface cable.

Specifications
●Laser product class: Class 1, IEC 60825-1 / EN 60825-1
●Particle size (6 channels): 0.3um, 0.5um, 1.0um, 2.0um, 5.0um, 10um
●Counting Efficiency: 50% @0.3um; 100% for particles > 0.45um (per JIS B9921:1997)
●Maximum particle concentration: 70,000 particles / L (coincidence loss max. 5%)

●Temperature / humidity measurable range: 10°C to 40°C, 20% to 90%RH (approximate)
●Buffer function:Store and recall values for up to 500 measurements
●PC interface:USB interface

●Power requirements : Built-in battery or AC adapter
●Battery : Rechargeable Lithium-ion (Li-ion) battery. Charged from supplied AC adapter when power is ON (charge time 2.5 hours).
●AC adapter : Output voltage : DC12V, 3A
●Accessories : Instruction manual, AC adapter, Power cord, USB cable, Zero count filter, Hardshell carrying case.
●Size: 218×110×67mm & Approx. 875g

! Notice !
*Customers have to pay customs duties and and taxes for international shipment

Make sure this fits by entering your model number.
Particle mass & particle counter in a single handheld unit.
Six mass ranges and eight particle sizes.
User K-factors setting for special particulate with different densities.
Integrated temperature / humidity sensor (no need for external add-on).
Flow rate 2.83 L / minute (0.1 CF / minute).
