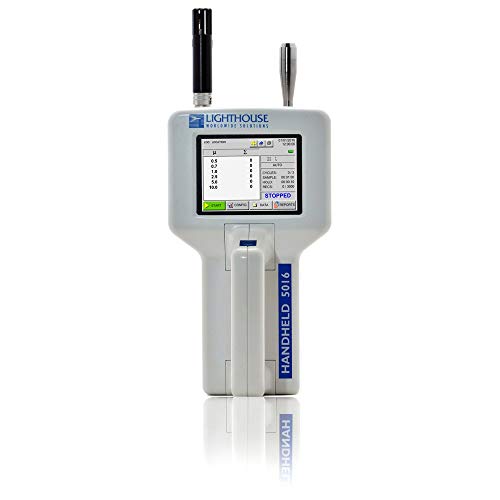

Lighthouse Handheld 5016 Airborne Particle Counter


Lighthouse Handheld 5016 Airborne Particle Counter

The Lighthouse Handheld 5016 particle counter features a minimum sensitivity of 0.5 μm and is the most advanced handheld particle counter on the market. Providing up to 6 particle size channels (0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm) of simultaneous counting, the Lighthouse Handheld 5016 can display cumulative and differential particle count data as well as Temperature/Relative Humidity data on the fast and easy to read color touch screen. Removable batteries and an optional charger help to maximize the Handheld 5016’s uptime. Data is easily downloaded using the Lighthouse Data Transfer Software. The Handheld 5016 can be used as a mobile particle monitor or become a part of a large facility monitoring and management system.

Lighthouse Handheld 5016 Features:

  • 0.5µm – 25µm
  • 0.1 CFM (2.83LPM) Flow Rate
  • View 6 Particle Sizes Simultaneously
  • Designed for ISO 21501-4 Compliance: calibration using NIST traceable PSL spheres
  • Bright 3.5″(8.89 cm)  Color Touch Screen Display
  • Removable / Rechargeable Li-Ion Battery
  • Large Memory for Storing Data (3,000 Samples)
  • Concentration Limit – 4,000,000 / ft3
  • Temperature / Relative Humidity Probe Included: 0-150°F (-17.8 to 65.6°C)±1.8°F@77°F, 0-100% ± 5%@33%
  • Alphanumetric Location Labels
  • Test Wizard for Cleanroom Pass / Fail Reports: FS-209E, ISO 14644-1 or EU GMP Annex 1


  • 2 Year Warranty
  • User Friendly Interface
  • International Support
  • Low Cost of Ownership


  • 50°F to 104°F (10°C to 40°C) / 20% to 95% non-condensing


  • 14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing
