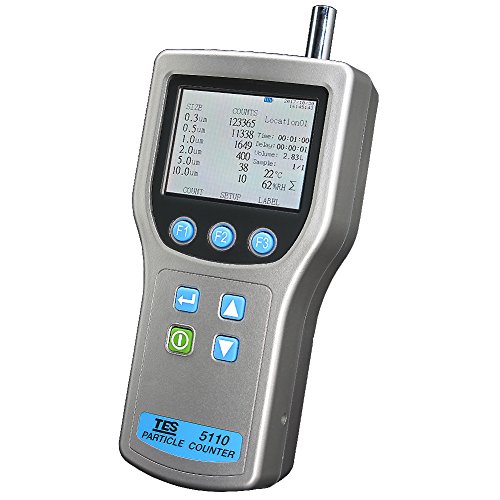

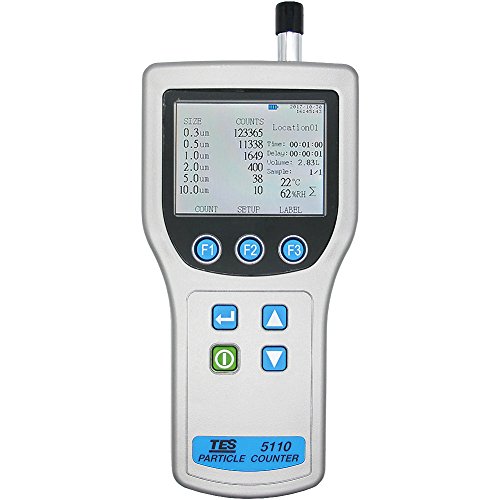

TES 5110 Particle Counter

Amazon.com Price: $2,688.49 (as of 12/27/2020 20:38 PST- Details)



TES 5110 Particle Counter is a portable instrument that measures and reports air contamination.
It holds 500 samples in memory and records the date, time, counts, sample volume, temperature, and relative humidity of each sample.
The data can be easily downloaded to a personal computer using the USB interface cable.

●Laser product class: Class 1, IEC 60825-1 / EN 60825-1
●Particle size (6 channels): 0.3um, 0.5um, 1.0um, 2.0um, 5.0um, 10um
●Counting Efficiency: 50% @0.3um; 100% for particles > 0.45um (per JIS B9921:1997)
●Maximum particle concentration: 70,000 particles / L (coincidence loss max. 5%)

●Temperature / humidity measurable range: 10°C to 40°C, 20% to 90%RH (approximate)
●Buffer function:Store and recall values for up to 500 measurements

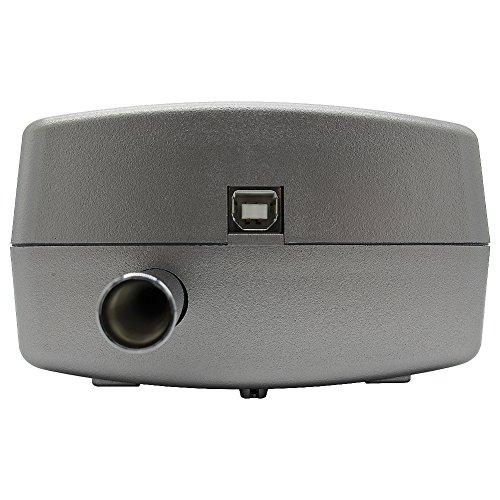

●PC interface:USB interface

●Power requirements:Built-in battery or AC adapter
●Battery:Rechargeable Lithium-ion (Li-ion) battery. Charged from supplied AC adapter when power is ON (charge time 2.5 hours).
●AC adapter : Output voltage : DC12V, 3A

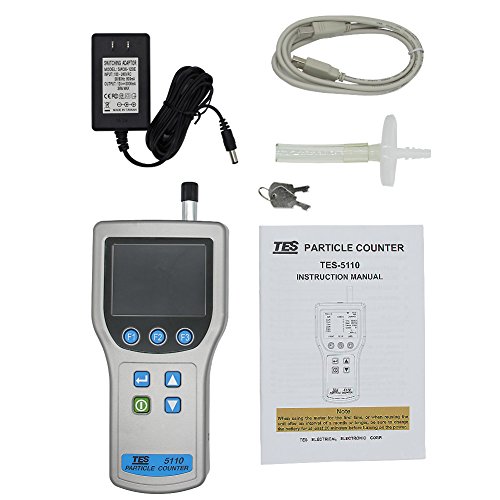

●Accessories:Instruction manual, AC adapter, Power cord, USB cable, Zero count filter, Hardshell carrying case.
●Size: 218×110×67mm & Approx. 875g
