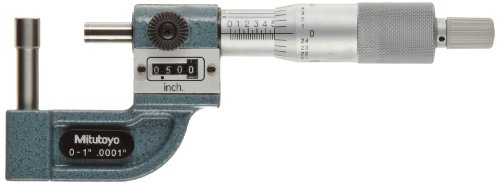

Mitutoyo 295-313 Tube Micrometer, Mechanical Counter Model, Ratchet Stop, 0-1″ Range, 0.0001″ Graduation, +/-0.00015″ Accuracy, 4.8mm Dia. Spherical Tip

31KPDVCrdtL
5168bpAMEsL

Mitutoyo 295-313 Tube Micrometer, Mechanical Counter Model, Ratchet Stop, 0-1″ Range, 0.0001″ Graduation, +/-0.00015″ Accuracy, 4.8mm Dia. Spherical Tip

Categories: ,

Description

Range:0-1″  |  Resolution:0.0001″  |  Measurement accuracy:+/-0.00015″  |  Part Number:295-313

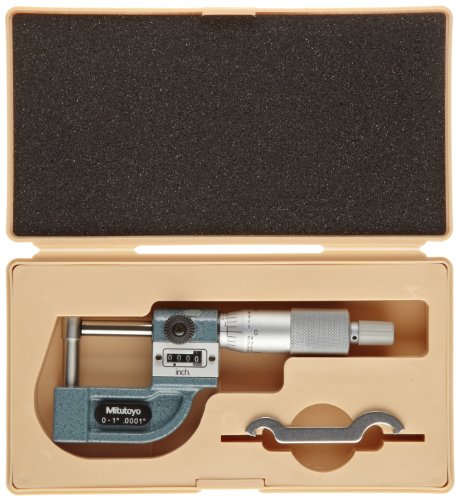

The Mitutoyo 295 series tube micrometer has a vertical anvil for measuring tubing wall thickness, and a mechanical digit counter for ease of reading to 0.01mm. It also has a vernier scale in metric units for taking precise outside diameter (OD) measurements and a ratchet-stop mechanism for uniform pressure during adjustment. The anvil type may be pin, spherical, or cylindrical, depending on the model. The micrometer’s frame has a baked enamel finish for protection and durability. The spindle and anvil are carbide-tipped for wear resistance. A spindle lock helps provide secure locking of the measurement position. The micrometer comes with a plastic case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.

Mitutoyo manufactures precision measuring tools, metrology equipment, and systems. The company was founded in Tokyo in 1934 and formed Mitutoyo America Corporation in 1963, which is headquartered in Aurora, IL.

Make sure this fits by entering your model number.
Vertical anvil (pin, spherical, or cylindrical) for measuring tubing wall thickness
Mechanical digit counter for ease of reading to 0.01mm
Ratchet-stop mechanism helps provide uniform pressure for precise, repeatable measurements
Baked enamel finish for protection and durability of frame
Carbide facing on spindle and anvil provides wear resistance

Additional information

Measurement Accuracy
Part Number
Domestic Shipping
International Shipping
Item model number
Brand
