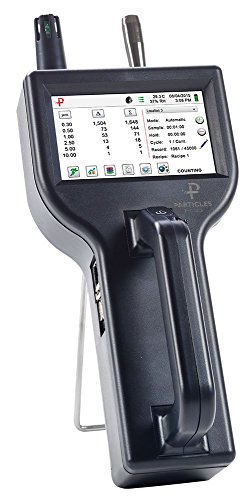

Particles Plus 8306 Handheld Particle Counter


Particles Plus 8306 Handheld Particle Counter

The Particles Plus 8306 Handheld Particle Counter measures 0.3 μm to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).

Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports. Export to Particles Plus data-software.

The 8306 also has a mass concentration mode that approximates density in μg/m³. The 8306 ensures compliance with an on-board pulse height analyzer.

Features and Benefits of the Particles Plus 8306 Handheld Particle Counter:

  • Measures 0.3 μm to 25.0 μm
  • 0.1 CFM (2.83 LPM) flow rate
  • Long life laser diode technology
  • Measures up to 6 channels of simultaneous data
  • Approximates mass concentration in μg/m³
  • Integrated handle for one-handed operation

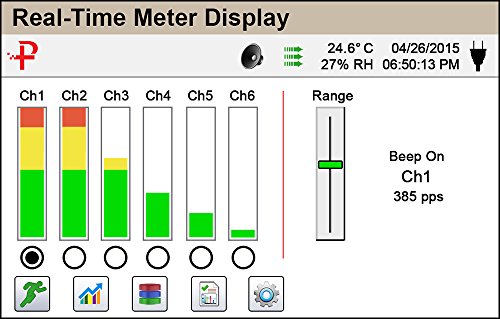

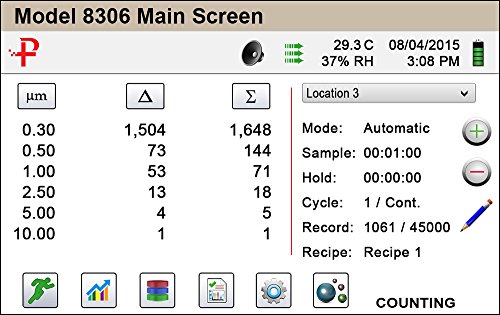

  • Large easy-to-use icon driven color touch screen display
  • (Optional) temperature and relative humidity probe
  • Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
  • IP Addressable connectivity provides online access for control and monitoring through multiple connection options on most smart devices
  • Easy configuration and transferable from instrument to instrument
  • Connect using USB, Ethernet, or (optional) Wireless 802.11 b/g, RS485 or RS232
  • Displays reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
  • Internal audible alarm
  • User-definable reports
  • User-selectable channel sizes
  • Complies with ISO 21501-4 and JIS B9921 standards. CE Certified
  • Lightweight high-impact injection molded plastic enclosure
  • 2 year limited warranty. Extended warranties available
  • Standard Accessories: Quick start guide, operating manual on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, data download software, USB cable, power supply & cable

Additional information

Item Weight
Item model number
