Description

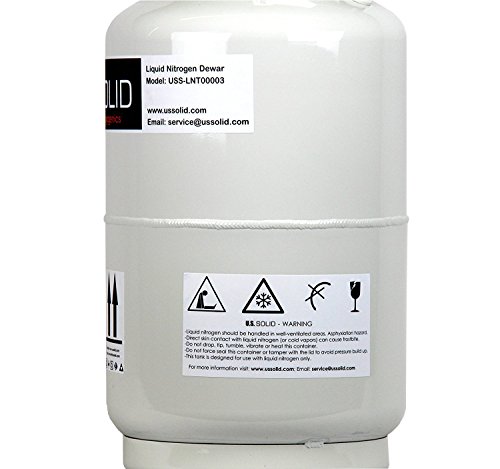

US SOLID Liquid Nitrogen Dewar

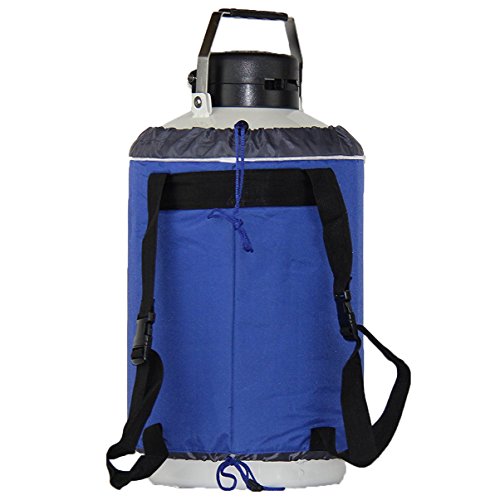

The U.S. Solid 10L Cryogenic Liquid Nitrogen (LN2) Dewars Tank is perfect to store your LN2. Using Dewar technology, this tank has a vacuum layer between two interior walls constructed with aerospace grade aluminum. It comes with 6 canisters fixed to straws and an insulated padded cover with straps which helps reduce LN2 loss and makes carrying hassle-free. This Dewar is portable, durable, and lightweight; Approx. weight: 14.5 lbs. empty (about 34.1 lbs. full). Holding time of LN2 for this tank is 60 days.

Capacity:

The U.S. Solid Cryogenic Container Liquid Nitrogen Tank Dewar can hold up to 10 Liters of liquid nitrogen

US SOLID Liquid Nitrogen DEWAR:

Dewars are designed for the sole purpose of holding extremely cold liquids such as liquid nitrogen; They have the shape, capacity, and material construction to store liquid nitrogen with a slower evaporation rate

Evaporation rate:

We test the evaporation rate of our liquid nitrogen tanks by completely filling them with liquid nitrogen and tracking the rate of evaporation

Canisters:

Each of the liquid nitrogen tanks come with six canisters; Five canisters come with holes at the bottom to store biological specimen and one sealed canister for dipping

Specification:

• U.S. Solid Model USS-LNT00003
• Volume: 10 L
• Neck Diameter: 1.97″ (50 mm)
• Vessel Diameter: 11.97″ (304 mm)
• Vessel Height: 21.65″ (550 mm)
• Empty Weight: 5.80 KG
• Static holding time: 85 days
• Evaporation: 0.12 L/day
• Number of canisters for storage of samples: 6
• Depth of canisters: 4.33″ (110 mm)
• Diameter of canister: 1.38″ (35 mm)
