Linear Stages, 2525mm X Micrometer Manual Displacement Platform…

Full product name

Linear Stages, 2525mm X Micrometer Manual Displacement Platform Linear Stage Sliding Table for Production Machinery…

As an Amazon Associate I earn from qualifying purchases. We may earn a commission if you buy through this link, at no extra cost to you.

Check Amazon.com for the current price, seller, availability and included accessories.

Description


Keenso- 25*25mm X Micrometer Manual Displacement Platform Linear Stage Sliding Table for Production Machinery, Testing Equipment, Optical Experimental Measurement

Specification:
Condition: 100% Brand New

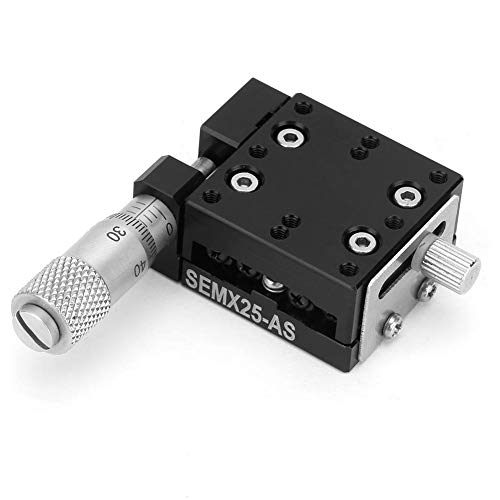

Model: SEMX25-AS
Material: Aluminium Alloy(black anodized surface)
Table Size: 25*25mm
Load Resistance: 9.8N
Stroke: ±3.2mm
Centimeter Card Accuracy: 0.01mm
Parallelism: 30um
Moving Parallelism: 10um
True Straightness: 3um
Moving Distance Adjustment: Micrometer Differential Head
Sliding Track: Linear Guide
Rail Type: Cross Roller Type
Weight: Approx. 61g / 2.2oz

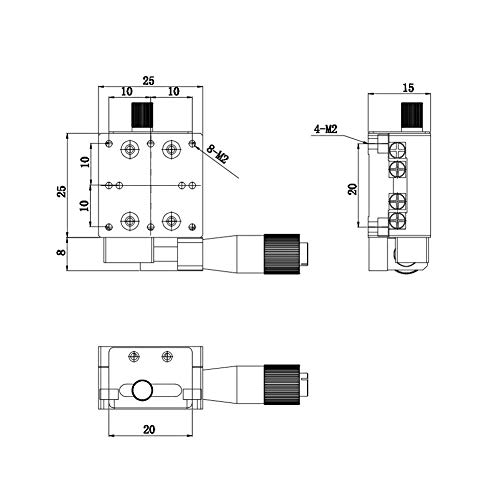

Size: Approx. 50 * 40 * 15mm / 2.0 * 1.6 * 0.6in

Package List:
1 * Linear Stages

Make sure this fits by entering your model number.
❤ Premium Quality: This linear stages is made of high quality aluminium alloy material, which is sturdy and durable. It is not easily damaged and rust, has reliable quality and long service life.
❤ Exquisite Workmanship: This linear stages adopts excellent machining process with precision machining and black anodized surface, which has stable performance, and can provide you with a superior using effect.
❤ Product Specification: Model: SEMX25-AS, table size: 25*25mm, load resistance: 9.8N, stroke: ±3.2mm, centimeter card accuracy: 0.01mm, parallelism: 30um, moving parallelism: 10um, true straightness: 3um, moving distance adjustment: micrometer differential head, sliding track: linear guide, rail type: cross roller type.
❤ Scope of Application: This is a single X for linear guide sliding track. This linear stages has high practicality, which can be widely used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement, etc.
❤ Guarantee: Our product have 180 days warranty, if you have any question about this product, please feel free to contact us, we will try our best to help you solve your problem.
