TR-Y-SRT-6210S Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer
Amazon.com Price: $862.99 (as of 12/27/2020 20:26 PST- Details) Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.
Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.
Manual or automatic shut down.
Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
Metric /Imperial Conversion.
Use USB data output and RS-232 data output to connect with PC.(Optional accessory)
Provide Bluetooth data output choice.(Optional accessory)
Display: 4 digits, 10 mm LCD, with blue backlight
Parameters: Ra, Rz, Rq, Rt
Measuring Range: Ra, Rq: 0.005~16.00 um / 0.020~629.9 uinch
Rz, Rt: 0.020~160.0 um / 0.078~6299 uinch
Accuracy: less than +- 10%
Fluctuation of display value: Not more than 6%
Sensor-Test Principle: Inductance type
Sensor-Radius of Probe Pin: 5 um
Sensor-Material of Probe Pin: Diamond
Sensor-Dynamo-measurement of Probe: 4 mN(0.4 gf)
Sensor-Probe Angle: 90 degree
Sensor-Vertical Radius of Guiding Head: 48 mm
Sensor-Maximum driving stroke: 17.5 mm / 0.7 inch
Sensor-Cutoff length (l): 0.25 mm / 0.8 mm / 2.5 mm optional
Driving speed-Sampling: When Length = 0.25 mm, Vt = 0.135 mm/s
When Length = 0.8 mm, Vt = 0.5 mm/s
When Length = 2.5 mm, Vt = 1 mm/s
Driving speed-Returning: Vt = 1 mm/s
Resolution: 0.001 um, if reading less than 10um
0.01 um, if 10um less than reading less than 100um
0.1 um, if reading more than 100um
Evaluation length: 1~5 L optional
Auto Power Off
Operating conditions: Temperature: 0~50 degree Humidity: less than 80 %RH
Power Supply: 4 x 1.5v AAA size (UM-4) battery(Not including)
Dimensions-Main Unit: 149 x 67 x 29 mm
Dimensions-Measuring Base: 185 x 56 x 47 mm
Weight: 485 g

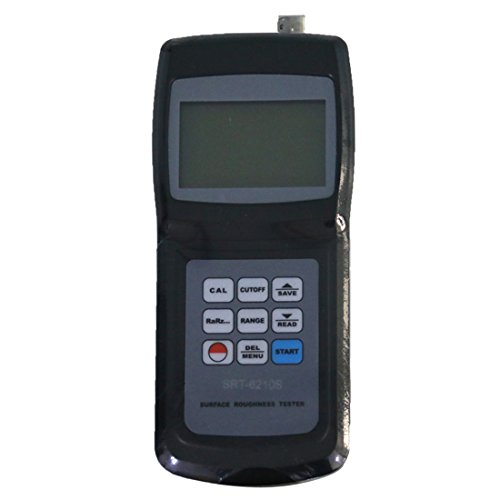

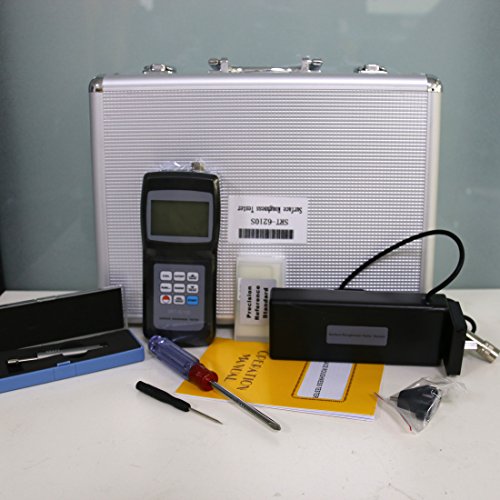

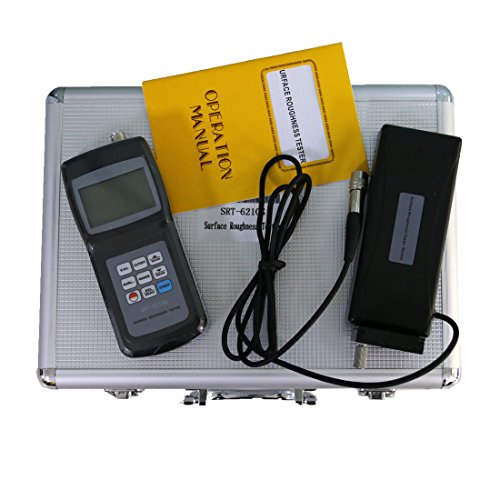

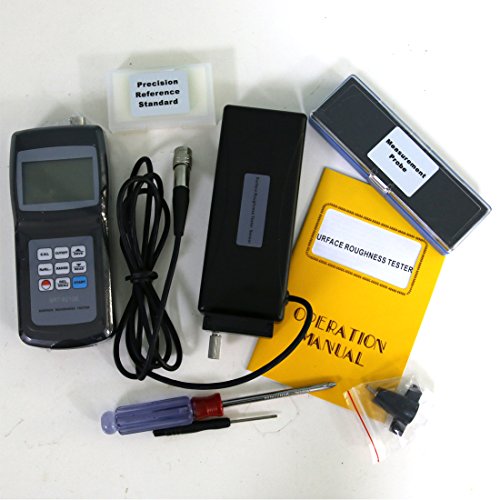

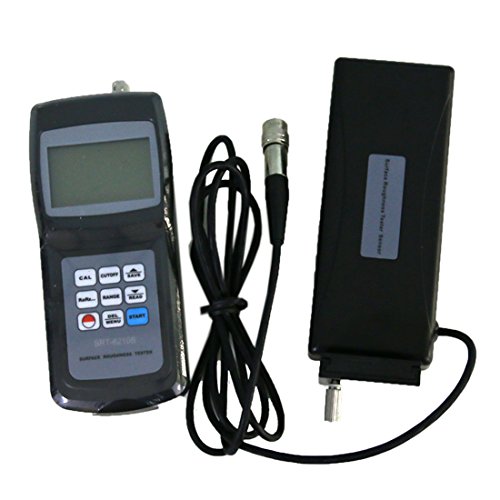

1. Main Unit
2. Small Screwdriver
3. Measuing Base
4. Adjustable Stand
5. Standard Sample Plate
6. Standard Sensor

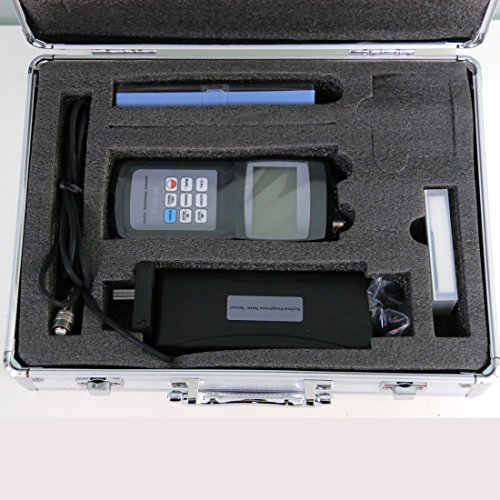

7. Carrying Case
8. Instruction Manual
If you need the optional accessories, please feel free to contact us.
